Key Specifications
- Net Power - ISO 9249 302 kW
- Operating Weight 52500 kg
- Maximum Digging Depth 7140 mm
- Emission Tier 3
High Efficiency, Low Operating Costs | Caterpillar Medium Excavator

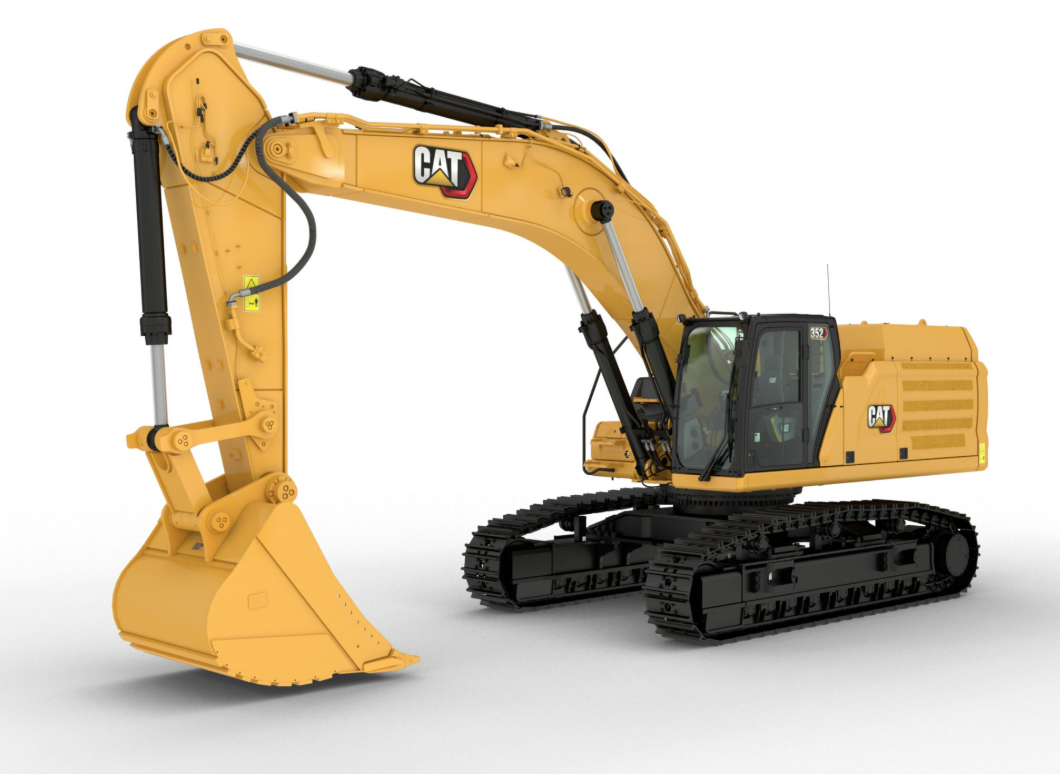

The CAT 352 Hydraulic Excavator is engineered to deliver exceptional performance in construction, mining, and earthmoving applications. Below is a comprehensive breakdown of its technical specifications to help you evaluate its capabilities for your projects.
From engine efficiency to working range, every detail is optimized for productivity and reliability.
| Net Power - ISO 9249 | 302 kW |
| Net Power - ISO 9249 (DIN) | 411 hp (metric) |
| Engine Model | Cat C13 |
| Engine Power - ISO 14396 | 303 kW |
| Engine Power - ISO 14396 (DIN) | 412 hp (metric) |
| Bore | 130 mm |
| Stroke | 157 mm |
| Displacement | 12.5 L |
| Operating Weight | 52500 kg |
| Max Digging Depth | 7140 mm |
| Max Reach at Ground Level | 11230 mm |
| Max Cutting Height | 10450 mm |
| Max Loading Height | 6910 mm |
| Min Loading Height | 2740 mm |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 6990 mm |
| Maximum Vertical Wall Digging Depth | 4520 mm |
| Bucket Digging Force - ISO | 292 kN |
| Stick Digging Force - ISO | 211 kN |
| Boom | Mass Boom 6.55 m (21'6") |
| Stick | Mass Stick M3 m (9'10") |
| Bucket | SD 3.5 m³ (4.58 yd³) |
